S-Type Filling Coupler Kegland

Product detailed description

The S-type KEG FILLER is designed for simple beer keg filling and is intended for a small commercial use.

SPECIFICATION

• Complete kit with Stainless steel coupler Kegland
• Recommended for filling up to 150 units of 50L kegs weekly
• 1x pressure gauge for keg pressure measurement
• Quickfits includes (8mm gas line, 9,5mm beverage line)

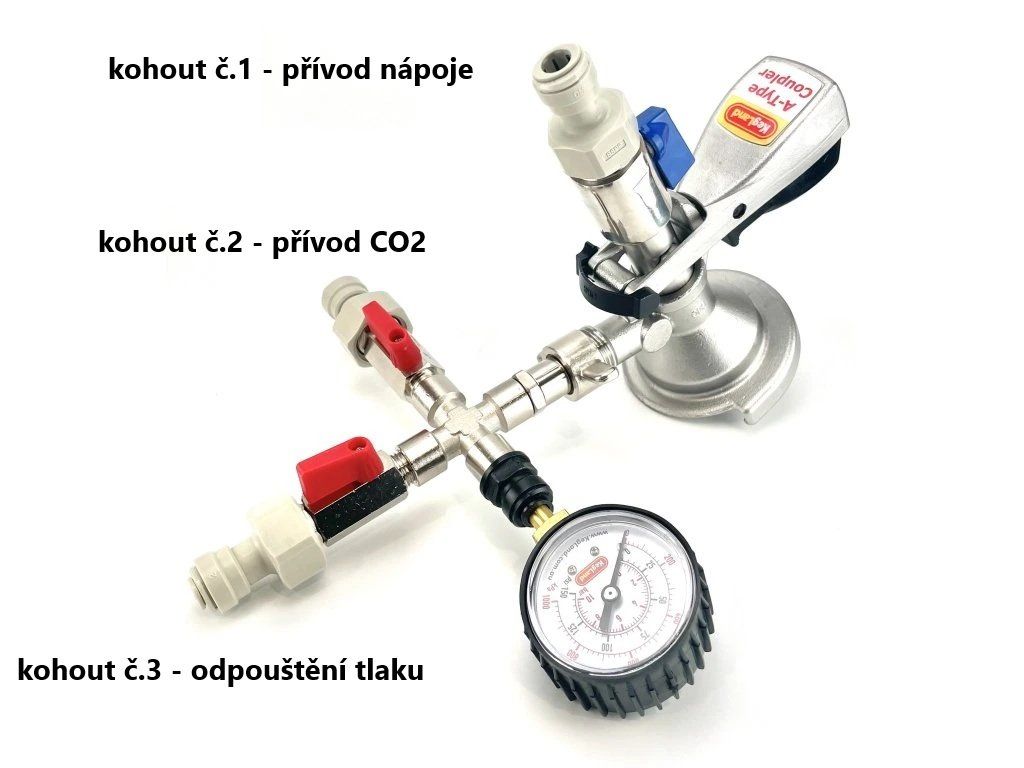

• Keg filler is equipped with 3 ball valves with 5/8" thread  for easy keg filling:
  • 1. ball valve - beverage input
  • 2. ball valve – pressure gas input
  • 3. ball valve – overpressure output

HOW FILL KEGS

1. Make sure all valves of the KEG filler are closed. Equip the KEG filler with speed-fits and hoses according to the recommended accessories
2. Connect the Keg filler with the keg.
3. Connect the valve no.1 with a beer hose and valve no.2 with a pressure hose. Open the valve No.2 and pressurize the keg with the same pressure as pressure in the beer tank from which will be the keg filled.
4. When the keg is pressurized close the valve no.2. Then open valve no.1.
5. To fill the keg with beer depressurize the keg by slowly opening the valve no.3. When a foam flows from the valve no.3 close the beer inlet (valve no.1). Close valve no.3. The keg is fully filled.
6. Disconnect the KEG filler.

Filling of the 50-liters keg takes from 1 up to 4 minutes – the time depends on the chosen overpressure and beer type.

Sent dismantled.
